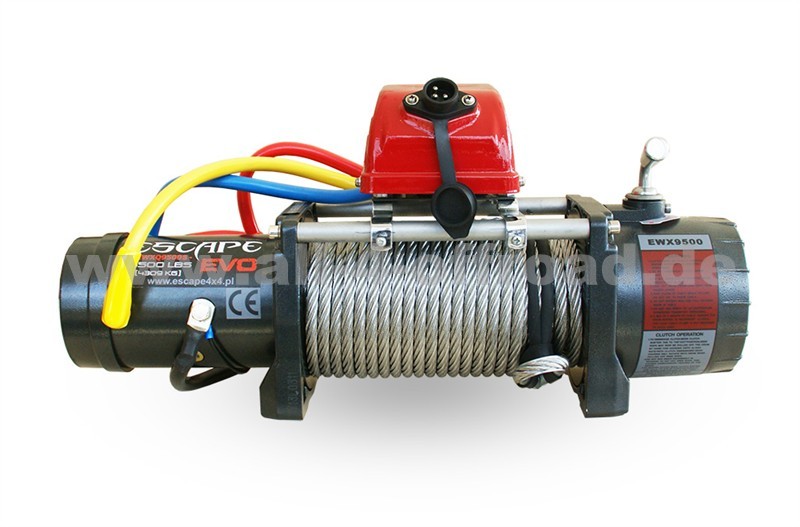

![Winde Escape Evo 9500 lbs [4309 kg] 12 V EWX-Q](http://www.all-4-offroad.de/fotocache/bigorig/6511.jpg "Winde Escape Evo 9500 lbs [4309 kg] 12 V EWX-Q")

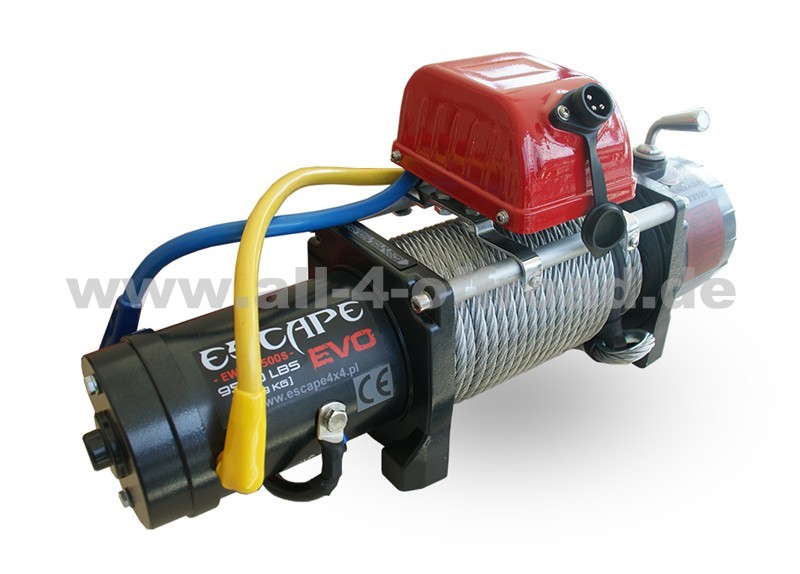

Beschreibung: Winde Escape Evo 9500 lbs [4309 kg] 12 V EWX-Q
Perfect for light and meium vehicles, for example Suzuki Samurai.
Very fast transmittion - gear ratio 110:1
The rolling speed of loose cable - 16 meters per minute!
Kit includes:
- winch with rope 12V
- roller
- wired control
- wireless control up to ±50 m
- relay box with cables
- hook
- montage bolts
Specifics:
- line pull - 9500 Lbs (4310 Kg)
- the engine - 8.6 HP / 6.4 KW
- transmission - planetary, 3-stage
- gear ratio - 110 : 1
- brake - reinforced automatic, friction
- drum size - 63 mm (diameter) x 223 mm (length)
- rope - steel, 9.2 mm (diameter) x 26 m (length)
- control - wired and wireless
- weigth - 40 kg
- dimensions - 589 x 166 x 251 mm
- mounting holes - 254 x 114.3 m
- warranty time - 24 months
